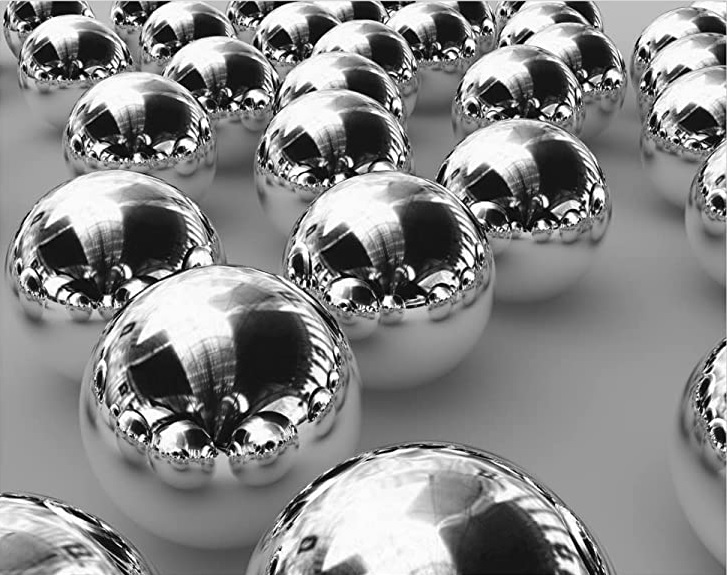

52100 Chrome Steel Balls (Bearing Steel Balls)

We offer balls in sizes ranging from 0.010″ to 8.0″ diameter, with grades from Grade 5 to Grade 1000 available

AISI Type 52100 Chrome Steel is ideal for dry grinding and milling applications that do not require corrosion resistance. This low alloy chrome steel features excellent wear resistance, high hardness, superior surface characteristics, and dimensional precision.  It is the preferred material for balls across numerous applications requiring through-hardening and high load-bearing capacity.

Hardened to 60-65 Rockwell Scale and are hardened all the way through the ball.

AISI 52100 Chrome Steel material balls are used in the dry grinding and milling applications where corrosion resistance is not require. This low alloy chrome steel has excellent wear resistance, high hardness, surface characteristics, and dimensional precision. It is an excellent material for balls used in various applications.

Common uses of chrome steel balls:

Agitator mixers in paint spray cans, casters, linear slides, door locks, and ball bearings in unlimited applications.

Vibratory polishing & burnishing steel media.

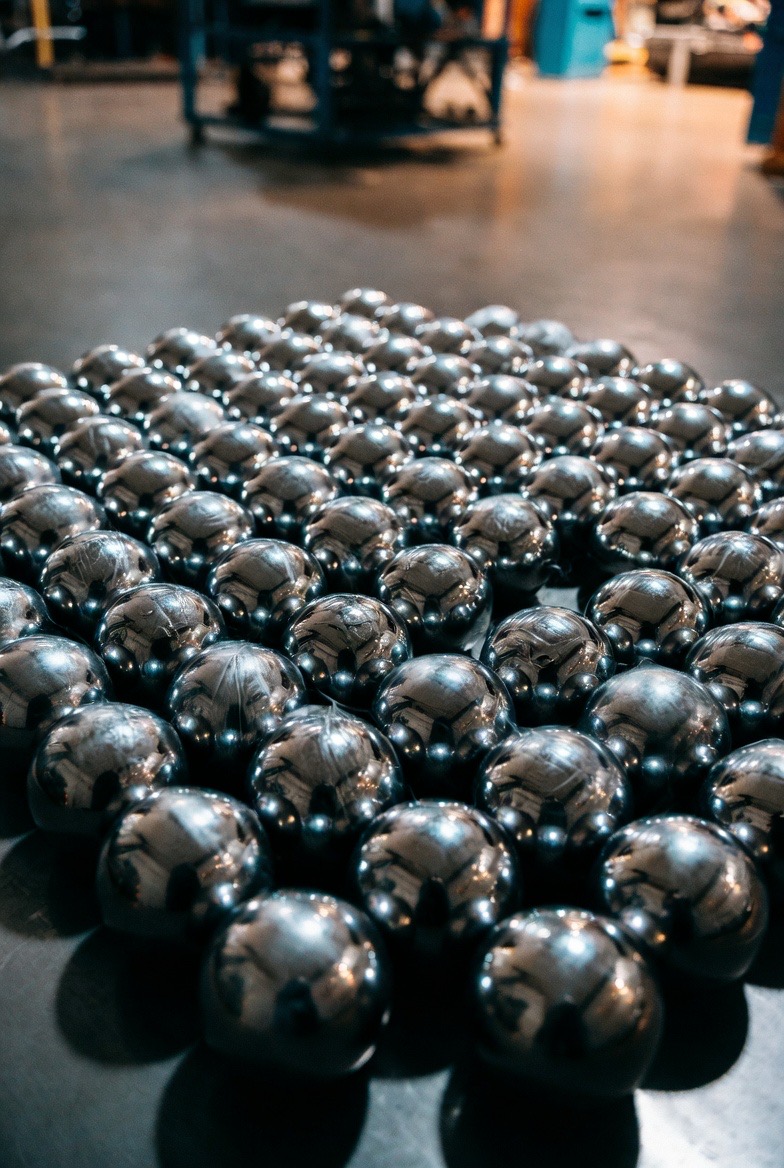

IMG_7078

  • High Load Capability:
    Excellent for applications demanding strength and consistent operation under pressure.

  • Dimensional Accuracy:
    Precision manufacturing ensures minimal runout and maximum efficiency, critical for high-speed and high-accuracy systems.

52100 Chrome Steel is the industry standard material for precision ball bearings due to its exceptional hardness, wear resistance, and fatigue life.

Characteristic
Value
Material Name
  52100 Chrome Steel / 100Cr6
Grade(s)
  AFBMA Ball Grades  Gr. 5, Gr.10, Gr.25, Gr.100, Etc.
Hardness
 60-65 HRC
Density
 7.81 g/cm³
Yield Strength
 ~2,050 MPa
Corrosion Resistance
  No
Magnetic
 Yes

Grade Options

Available in precision grades from Grade 5 (ultra-precision) to Grade 200 (industrial use), including the following popular grades:

  • Grade 5
  • Grade 10
  • Grade 25
  • Grade 50
  • Grade 100
  • Grade 200
We can offer balls in a size range of 0.010″ to 8.0″ dia. and in any grades from Grade 5 to Grade 1000
Available Sizes: 0.4mm to 101.6mm
(other sizes on request)



Finish: Highly polished, ultra-precision tolerance, surface roundness & micro-finish

Special Services

  • Custom diameters and tolerances
  • Special surface finishes and coatings
  • Rapid shipping and large inventory

Contact us for a quote on our chrome steel balls and services.
